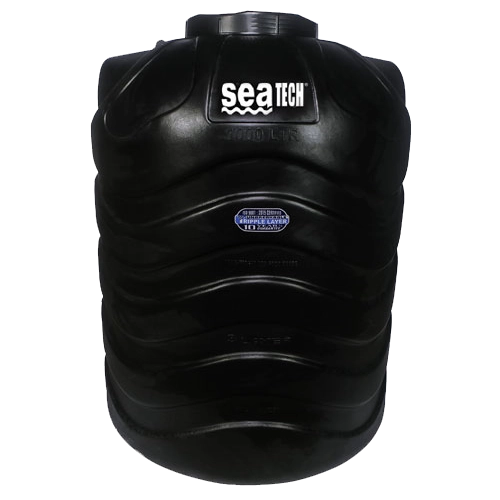

SEA TECH BLOW TANKS SPECIFICATIONS
Material Specifications
| Specification | Value |
|---|---|
| Carbon Black Content (CBC) | 2-3% |
| Melting Flow Index (MFI) | 2.0 - 6.0 gm/10 mins |
| Density | 932-943 Kg/m³ |
| Tensile Strength | Above 12 N/mm² |
| Flexural Modulus | Above 300 N/mm² |
| Overall Migration | Max 10 mg/dm² |
Tank Dimensions
| Capacity (Ltr) | Overall Height (mm) | Overall Diameter (mm) | Manhole Diameter (mm) |
|---|---|---|---|
| 500 | 1040 | 860 | 400 |
| 750 | 1270 | 1000 | 400 |
| 1000 | 1370 | 1120 | 400 |
| 2000 | 1630 | 1400 | 400 |
